Homepage >DS013 Rotary Tiller With Sensing Device

DS013
Rotary Tiller With Sensing Device

Gearboxes of Soil Tillage Machine
DS013

Rotary Tiller With Sensing Device

Specifications

Gear Ratio 1,28:1
Input Speed 540 rpm
Output Speed 420 rpm
Input Power 30 HP / 22 kW
Output Torque 492 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1 Lt.
Weight 20 kg
Usage Area Rotary Tiller With Sensing Device

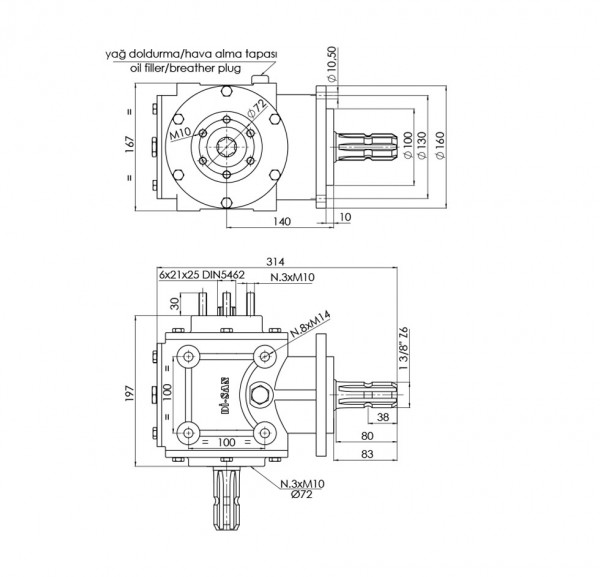

Technical Drawing
DS013
Rotary Tiller With Sensing Device

Rotary Tiller With Sensing Device Technical Drawing

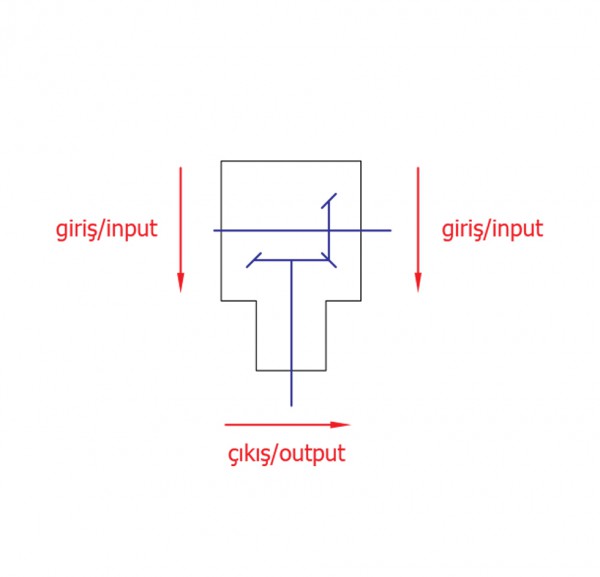

Gear Arrangement
DS013
Rotary Tiller With Sensing Device

Rotary Tiller With Sensing Device Gear Arrangement
