Homepage >DS503 Snowblower

DS503
Snowblower

Gearboxes of Land Preparation Machine
DS503

Snowblower

Product Document

Specifications

Gear Ratio 2,07:1
Input Speed 540 rpm
Output Speed 260 rpm
Input Power 16 HP / 12 kW
Output Torque 427 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1 Lt.
Weight 16 kg
Usage Area Snowblower



Technical Drawing
DS503
Snowblower

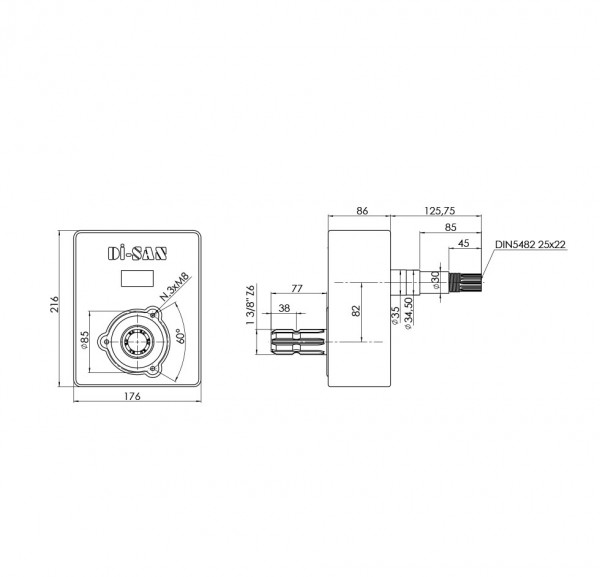

Snowblower Technical Drawing

Gear Arrangement
DS503
Snowblower

Snowblower Gear Arrangement
