Homepage >DS408 Flail Mulcher

DS408
Flail Mulcher

Gearboxes of Land Preparation Machine
DS408

Flail Mulcher

Product Document

Specifications

Gear Ratio 1:1,93
Input Speed 540 rpm
Output Speed 1044 rpm
Input Power 65 HP / 48 kW
Output Torque 430 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 3 Lt.
Weight 45,50 kg
Usage Area Flail Mulcher

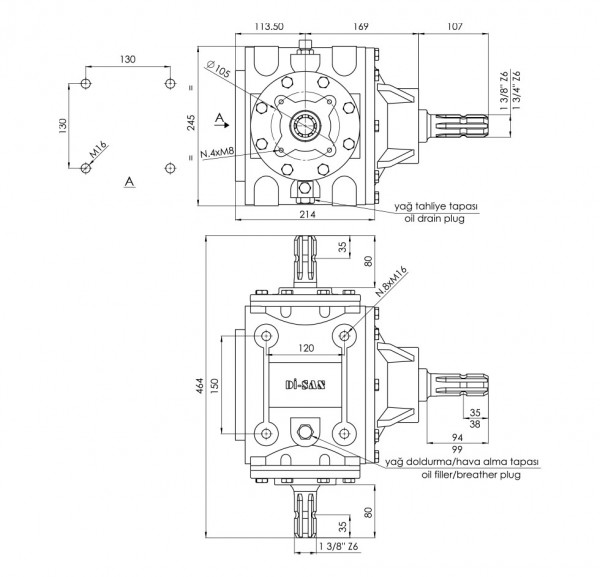

Technical Drawing
DS408
Flail Mulcher

Flail Mulcher Technical Drawing

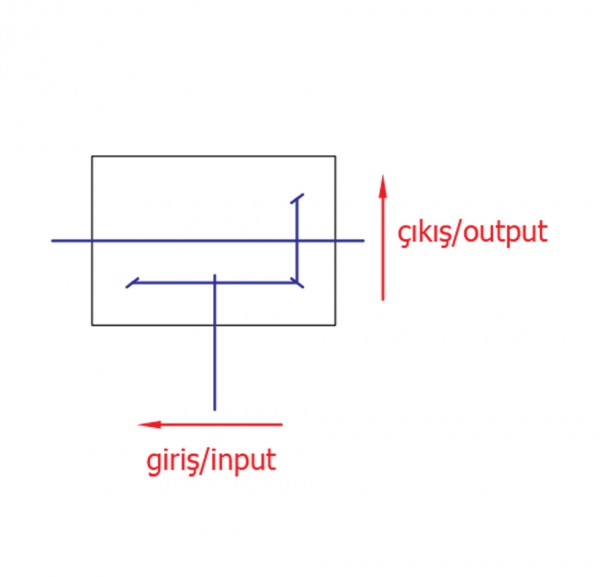

Gear Arrangement
DS408
Flail Mulcher

Flail Mulcher Gear Arrangement
