Homepage >DS400 Manure Spreader

DS400
Manure Spreader

Gearboxes of Land Preparation Machine
DS400

Manure Spreader

Specifications

Gear Ratio 1:1,61
Input Speed 334 rpm
Output Speed 540 rpm
Input Power 50 HP / 37 kW
Output Torque 635 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1,50 Lt.
Weight 30 kg
Usage Area Manure Spreader

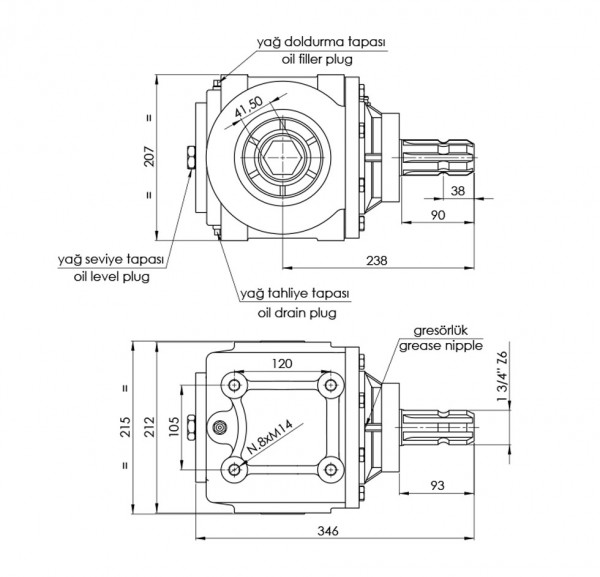

Technical Drawing
DS400
Manure Spreader

Manure Spreader Technical Drawing

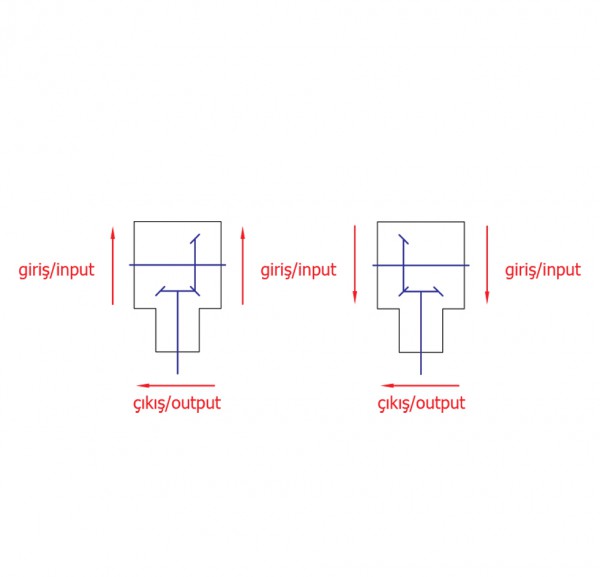

Gear Arrangement
DS400
Manure Spreader

Manure Spreader Gear Arrangement
