Homepage >DS304 Grain Dryer

DS304
Grain Dryer

Gearboxes of Harvesting Machine
DS304

Grain Dryer

Product Document

Specifications

Gear Ratio 5,33:1
Input Speed 540 rpm
Output Speed 101 rpm
Input Power 13 HP / 10 kW
Output Torque 917 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1 Lt.
Weight 20 kg
Usage Area Grain Dryer



Technical Drawing
DS304
Grain Dryer

Grain Dryer Technical Drawing

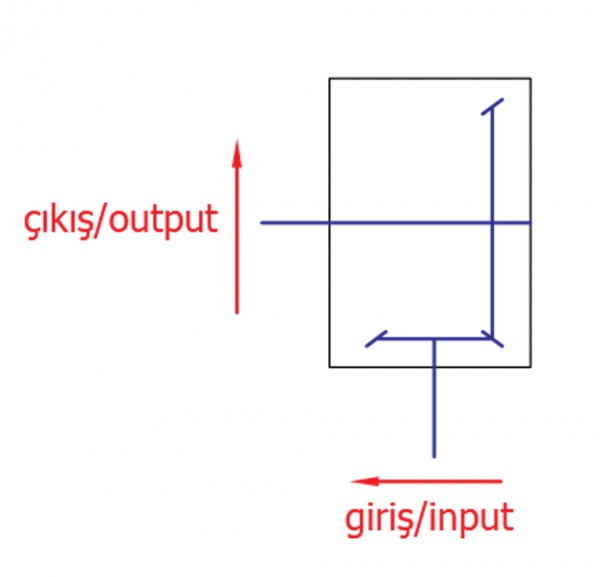

Gear Arrangement
DS304
Grain Dryer

Grain Dryer Gear Arrangement
