Homepage >DS023 Power Harrow

DS023
Power Harrow

Gearboxes of Soil Tillage Machine
DS023

Power Harrow

Product Document

Specifications

Gear Ratio 1,93:1
Input Speed 540 rpm
Output Speed 279 rpm
Input Power 65 HP / 48 kW
Output Torque 1610 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 3 Lt.
Weight 55 kg
Usage Area Power Harrow

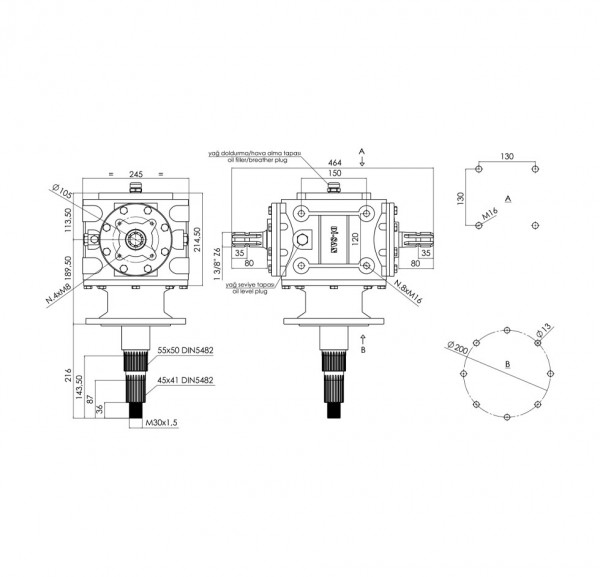

Technical Drawing
DS023
Power Harrow

Power Harrow Technical Drawing

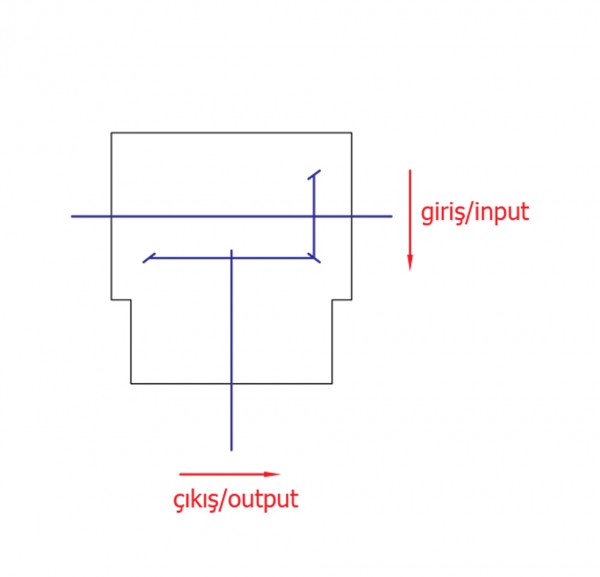

Gear Arrangement
DS023
Power Harrow

Power Harrow Gear Arrangement
