Homepage >DS018 Folding Rotary Tiller

DS018
Folding Rotary Tiller

Gearboxes of Soil Tillage Machine
DS018

Folding Rotary Tiller

Product Document

Specifications

Gear Ratio 1:1,41
Input Speed 654 rpm
Output Speed 923 rpm
Input Power 200 HP / 149 kW
Output Torque 1495 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 2 Lt.
Weight 42,50 kg
Usage Area Folding Rotary Tiller



Technical Drawing
DS018
Folding Rotary Tiller

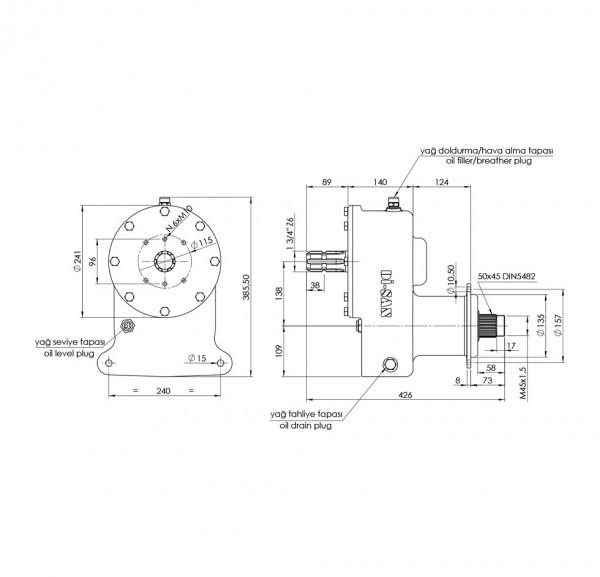

Folding Rotary Tiller Technical Drawing

Gear Arrangement
DS018
Folding Rotary Tiller

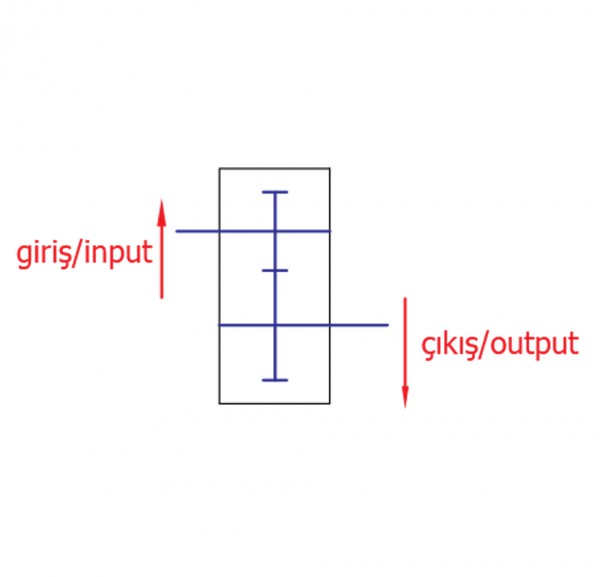

Folding Rotary Tiller Gear Arrangement
