DS010
Rotary Tiller
Specifications
| Gearshift | First Gear | Second Gear | Third Gear | Fourth Gear |

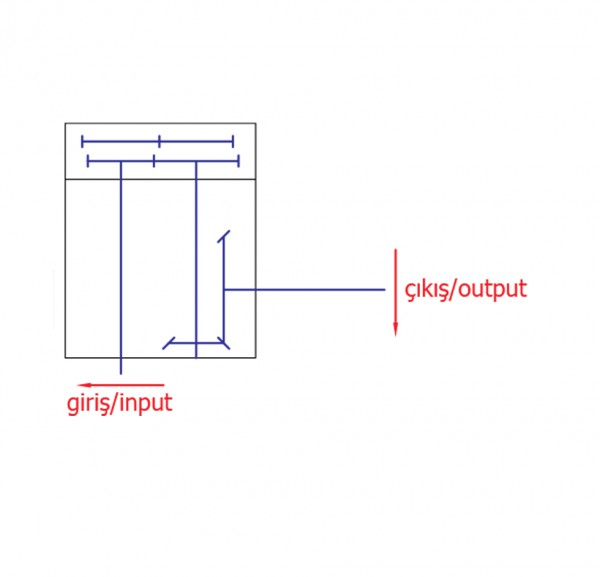

| Gear Arrangement | 21-17 | 20-19 | 19-20 | 17-21 |
| Gear Ratio | 2,66:1 | 2,26:1 | 2,04:1 | 1,74:1 |
| Input Speed | 540 rpm | |||
| Output Speed | 203 rpm | 238 rpm | 264 rpm | 310 rpm |
| Input Power | 130 HP / 97 kW | |||
| Output Torque | 4338 Nm | 3700 Nm | 3335 Nm | 2840 Nm |
| Oil Grade | SAE 90 / SAE 140 | |||
| Oil Volume | 7 Lt. | |||
| Usage Area | Rotary Tiller | |||
| L = Producible according to the your request | ||||
| Rotary Tiller | |
| Working Width | L |
| 350 cm | 1750 mm |
| 400 cm | 2000 mm |
