Homepage >DS205 Rotary Mower

DS205
Rotary Mower

Gearboxes of Mower
DS205

Rotary Mower

Product Document

Specifications

Gear Ratio 1:3
Input Speed 540 rpm
Output Speed 1620 rpm
Input Power 50 HP / 37 kW
Output Torque 212 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 2,50 Lt.
Weight 31,50 kg
Usage Area Rotary Mower

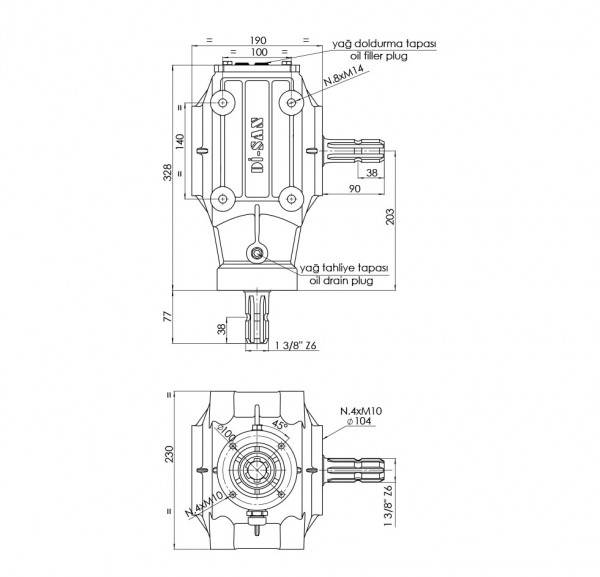

Technical Drawing
DS205
Rotary Mower

Rotary Mower Technical Drawing

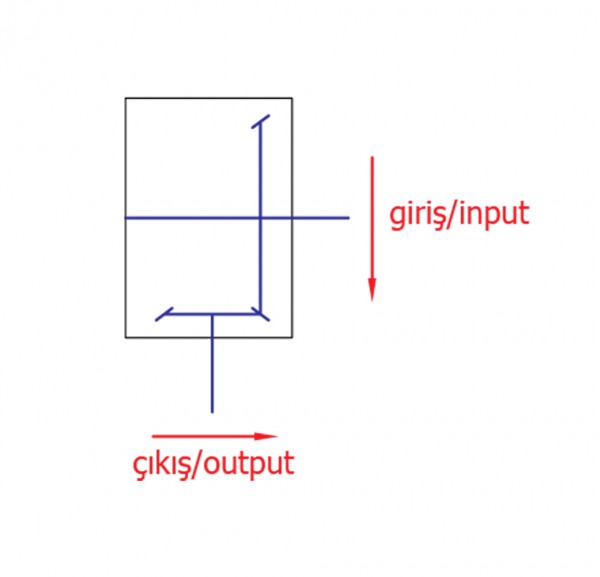

Gear Arrangement
DS205
Rotary Mower

Rotary Mower Gear Arrangement
