Homepage >DS502 Snowblower

DS502
Snowblower

Gearboxes of Land Preparation Machine
DS502

Snowblower

Product Document

Specifications

Gear Ratio 4,50:1
Input Speed 540 rpm
Output Speed 120 rpm
Input Power 16 HP / 12 kW
Output Torque 926 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1 Lt.
Weight 19 kg
Usage Area Snowblower

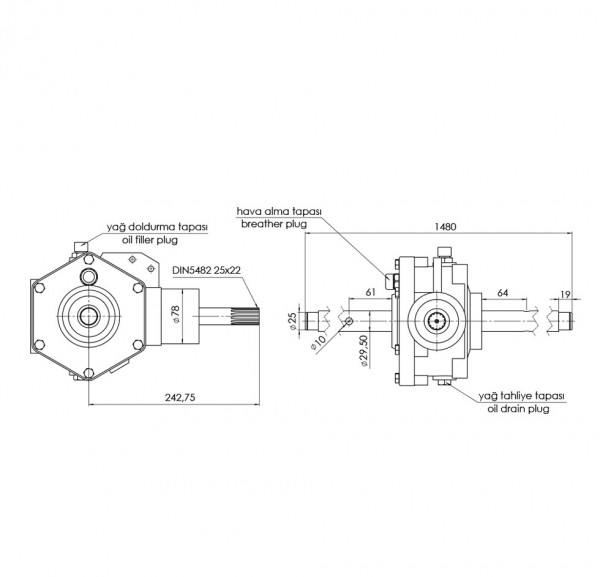

Technical Drawing
DS502
Snowblower

Snowblower Technical Drawing

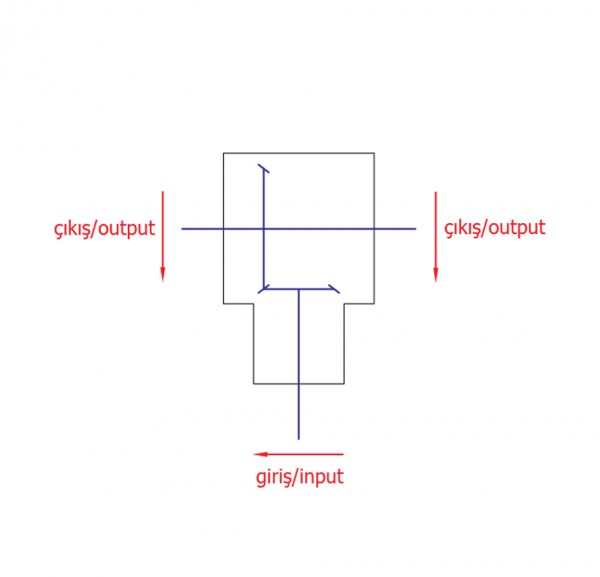

Gear Arrangement
DS502
Snowblower

Snowblower Gear Arrangement
