Homepage >DS501 Miscellaneous Machines

DS501
Miscellaneous Machines

Gearboxes of Land Preparation Machine
DS501

Miscellaneous Machines

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 70 HP / 52 kW
Output Torque 895 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1,50 Lt.
Weight 33 kg
Usage Area Miscellaneous Machines



Technical Drawing
DS501
Miscellaneous Machines

Miscellaneous Machines Technical Drawing

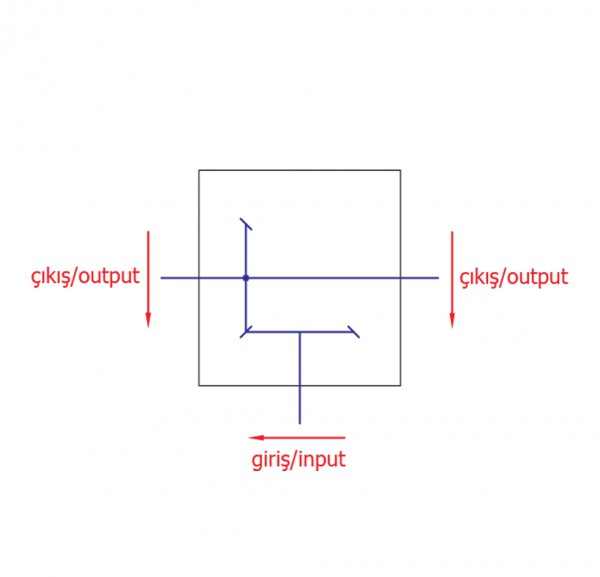

Gear Arrangement
DS501
Miscellaneous Machines

Miscellaneous Machines Gear Arrangement
