Homepage >DS411 Manure Spreader

DS411
Manure Spreader

Gearboxes of Land Preparation Machine
DS411

Manure Spreader

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 33 HP / 25 kW
Output Torque 422 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 0,50 Lt.
Weight 15 kg
Usage Area Manure Spreader

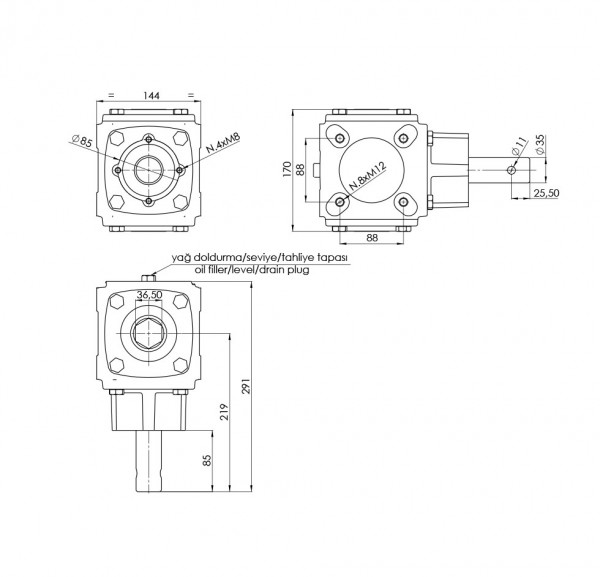

Technical Drawing
DS411
Manure Spreader

Manure Spreader Technical Drawing

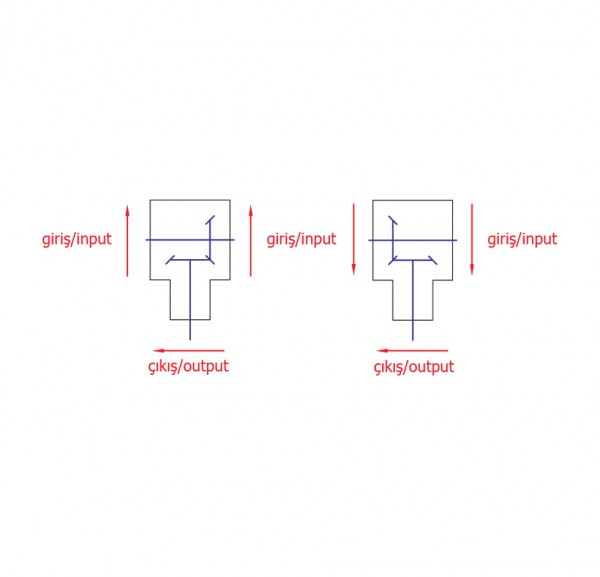

Gear Arrangement
DS411
Manure Spreader

Manure Spreader Gear Arrangement
