Homepage >DS410 Manure Spreader

DS410
Manure Spreader

Gearboxes of Land Preparation Machine
DS410

Manure Spreader

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 33 HP / 25 kW
Output Torque 422 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 0,50 Lt.
Weight 15 kg
Usage Area Manure Spreader



Technical Drawing
DS410
Manure Spreader

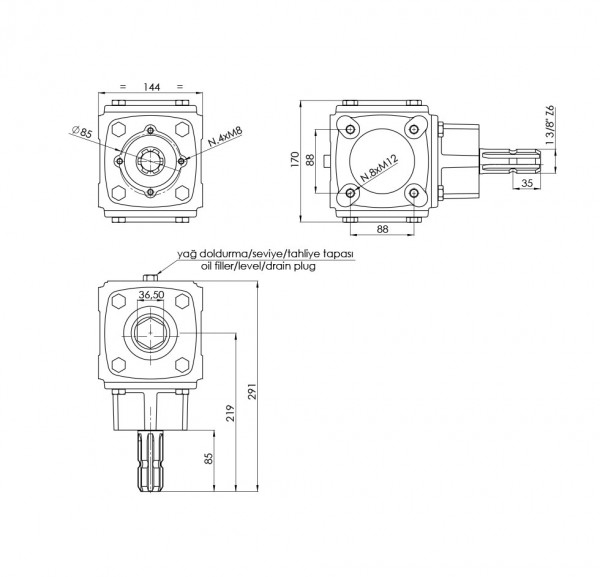

Manure Spreader Technical Drawing

Gear Arrangement
DS410
Manure Spreader

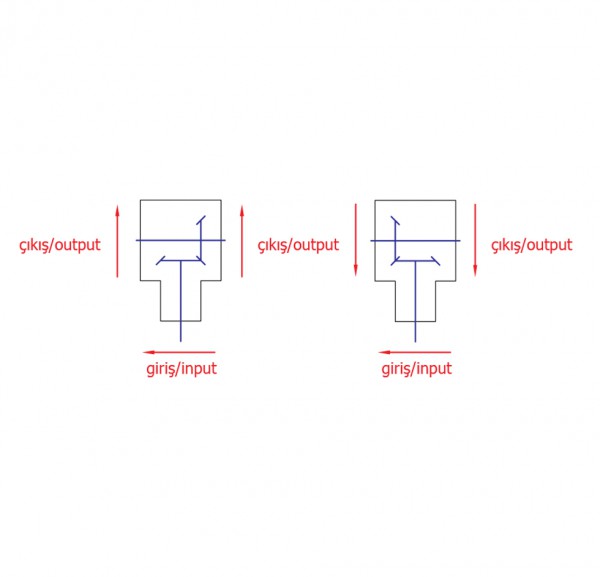

Manure Spreader Gear Arrangement
