Homepage >DS407 Forestry Mulcher

DS407
Forestry Mulcher

Gearboxes of Land Preparation Machine
DS407

Forestry Mulcher

Specifications

Gear Ratio 1:3
Input Speed 540 rpm
Output Speed 1620 rpm
Input Power 70 HP / 52 kW
Output Torque 298 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 2,50 Lt.
Usage Area Forestry Mulcher
L = Producible according to the your request

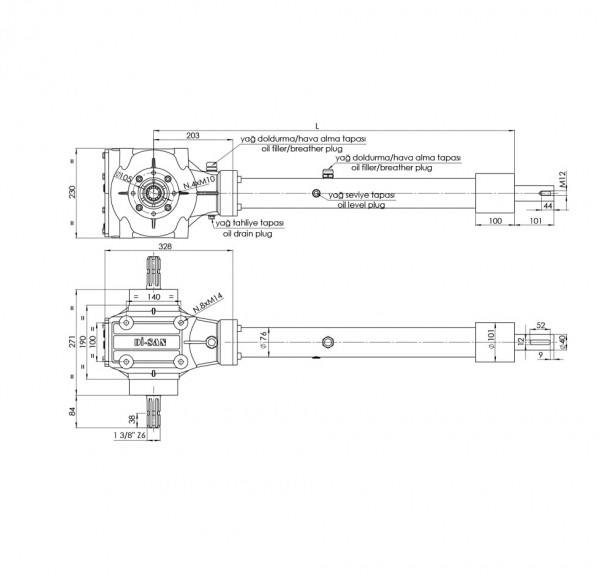

Technical Drawing
DS407
Forestry Mulcher

Forestry Mulcher Technical Drawing

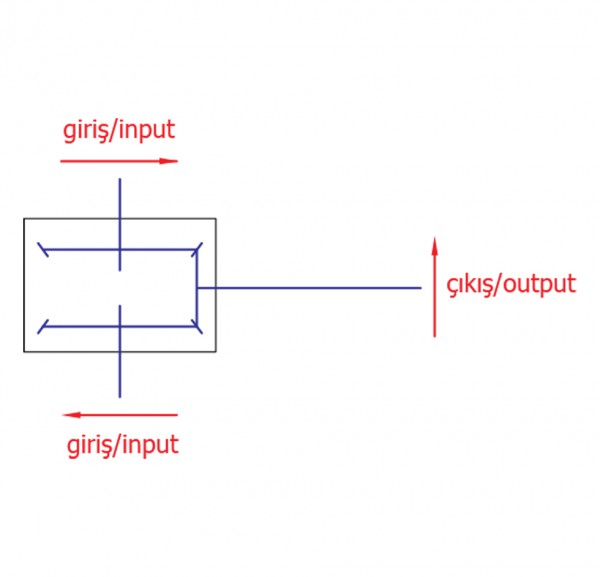

Gear Arrangement
DS407
Forestry Mulcher

Forestry Mulcher Gear Arrangement
