Homepage >DS405 Stone Picker

DS405
Stone Picker

Gearboxes of Land Preparation Machine
DS405

Stone Picker

Specifications

Gear Ratio 1,93:1
Input Speed 540 rpm
Output Speed 279 rpm
Input Power 65 HP / 48 kW
Output Torque 1610 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 3 Lt.
Usage Area Stone Picker
L = Producible according to the your request

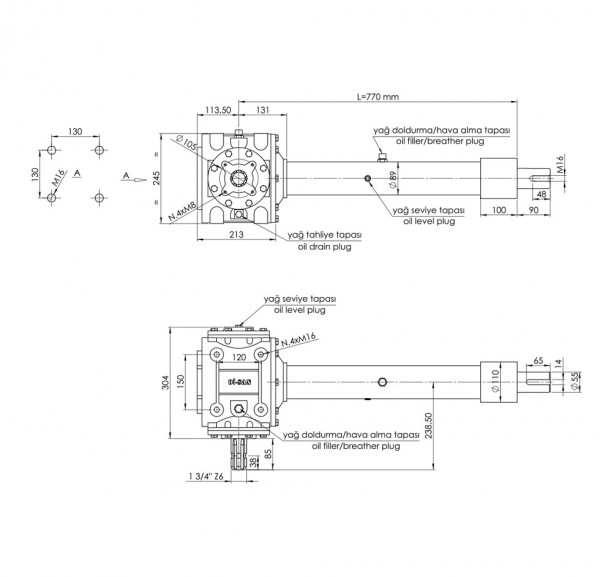

Technical Drawing
DS405
Stone Picker

Stone Picker Technical Drawing

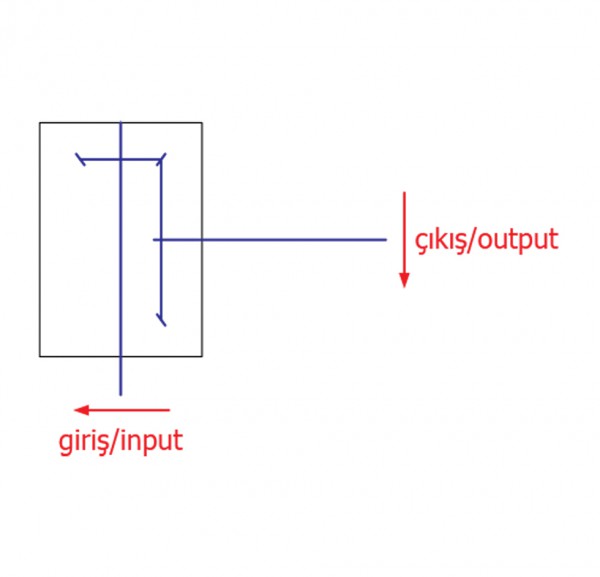

Gear Arrangement
DS405
Stone Picker

Stone Picker Gear Arrangement
