Homepage >DS404 Stone Picker

DS404
Stone Picker

Gearboxes of Land Preparation Machine
DS404

Stone Picker

Product Document

Specifications

Gear Ratio 1,86:1
Input Speed 540 rpm
Output Speed 289 rpm
Input Power 80 HP / 60 kW
Output Torque 1910 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 4 Lt.
Weight 56 kg
Usage Area Stone Picker

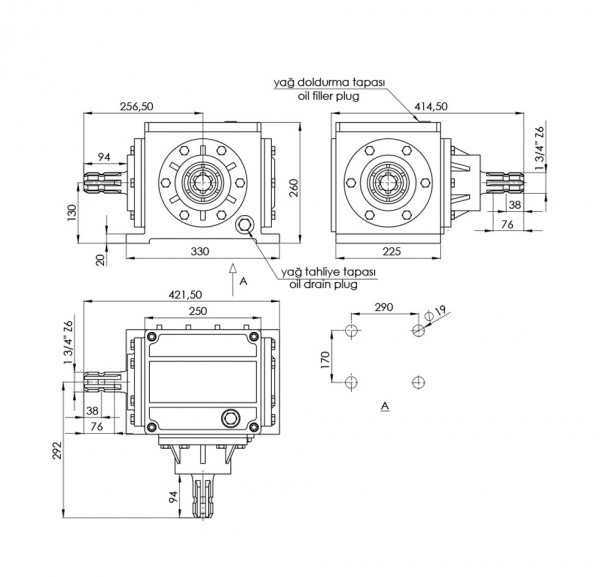

Technical Drawing
DS404
Stone Picker

Stone Picker Technical Drawing

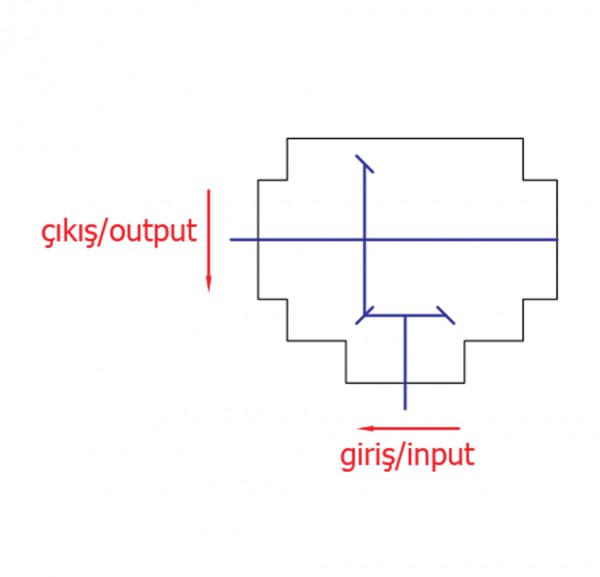

Gear Arrangement
DS404
Stone Picker

Stone Picker Gear Arrangement
