DS403
Manure Spreader

Gearboxes of Land Preparation Machine
DS403

Manure Spreader

Specifications

Gear Ratio 29,50:1
Input Speed 540 rpm
Output Speed 18 rpm
Input Power 8 HP / 6 kW
Output Torque 3000 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 2 Lt.
Weight 33 kg
Usage Area Manure Spreader

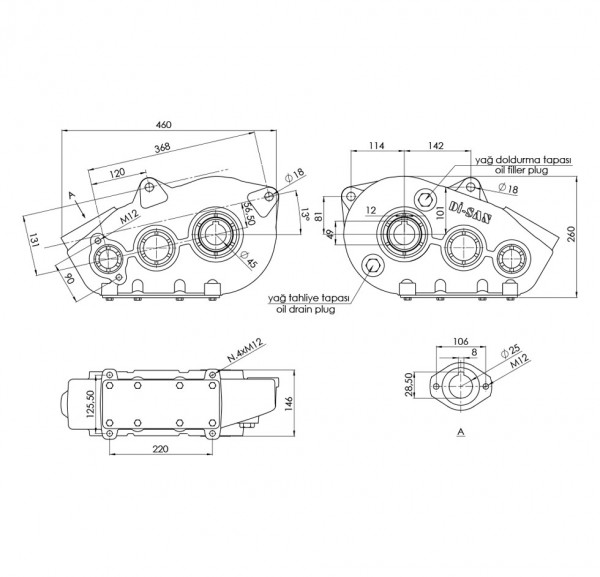

Technical Drawing
DS403
Manure Spreader

Manure Spreader Technical Drawing

Gear Arrangement
DS403
Manure Spreader

Manure Spreader Gear Arrangement
