Homepage >DS401 Manure Spreader

DS401
Manure Spreader

Gearboxes of Land Preparation Machine
DS401

Manure Spreader

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 75 HP / 56 kW
Output Torque 960 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1,50 Lt.
Weight 34 kg
Usage Area Manure Spreader

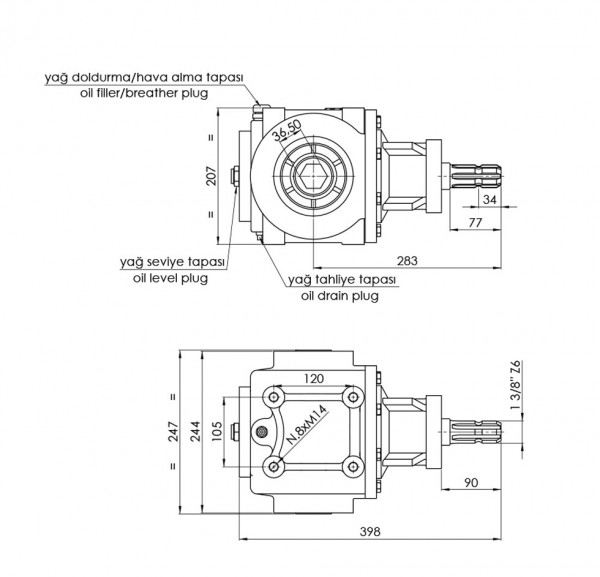

Technical Drawing
DS401
Manure Spreader

Manure Spreader Technical Drawing

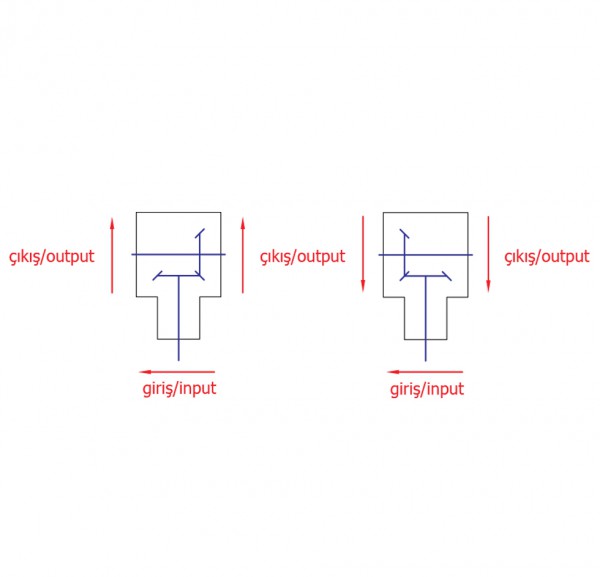

Gear Arrangement
DS401
Manure Spreader

Manure Spreader Gear Arrangement
