Homepage >DS323 Corn Header

DS323
Corn Header

Gearboxes of Harvesting Machine
DS323

Corn Header

Product Document

Specifications

Gear Ratio 2,07:1
Input Speed 1200 rpm
Output Speed 579 rpm
Input Power 60 HP / 45 kW
Output Torque 715 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1,50 Lt.
Weight 23 kg
Usage Area Corn Header

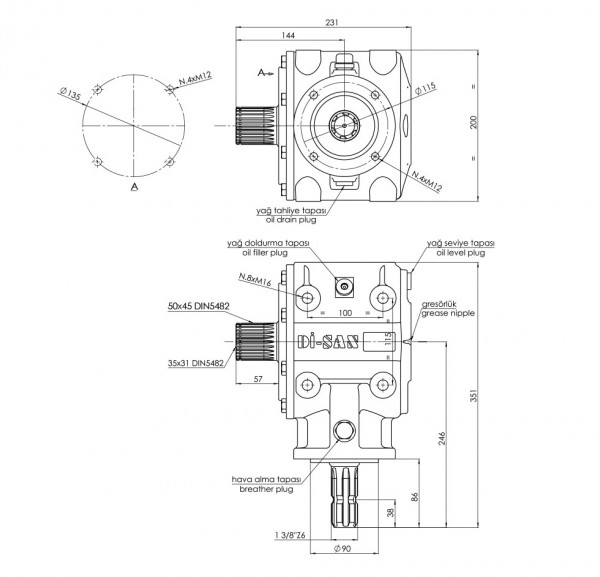

Technical Drawing
DS323
Corn Header

Corn Header Technical Drawing

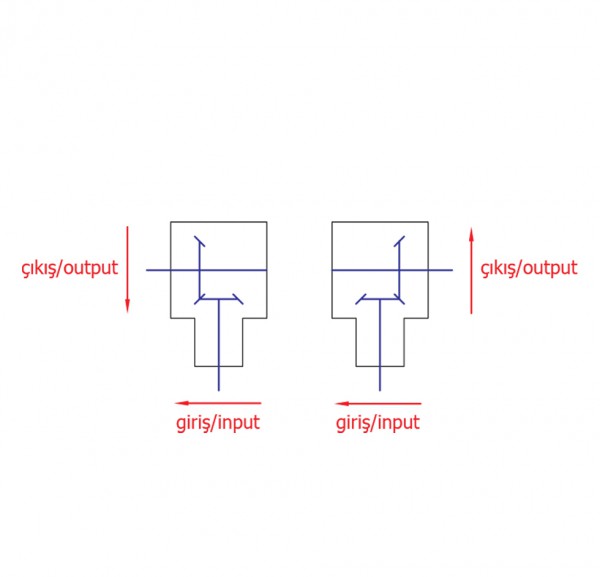

Gear Arrangement
DS323
Corn Header

Corn Header Gear Arrangement
