Homepage >DS314 Tree Shaker Machine

DS314
Tree Shaker Machine

Gearboxes of Harvesting Machine
DS314

Tree Shaker Machine

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 40 HP / 30 kW
Oil Grade SAE 90 / SAE 140
Oil Volume 1,50 Lt.
Weight 26 kg
Usage Area Tree Shaker Machine



Technical Drawing
DS314
Tree Shaker Machine

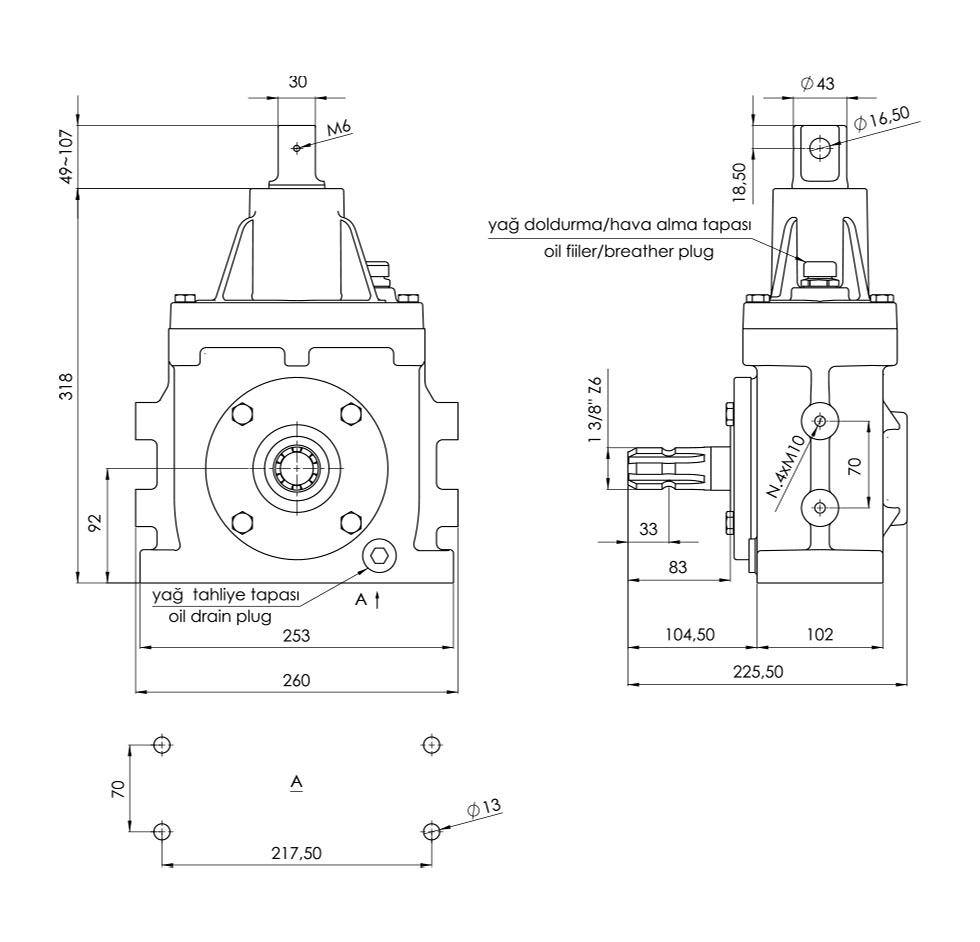

Tree Shaker Machine Technical Drawing

Piston Arrangement
DS314
Tree Shaker Machine

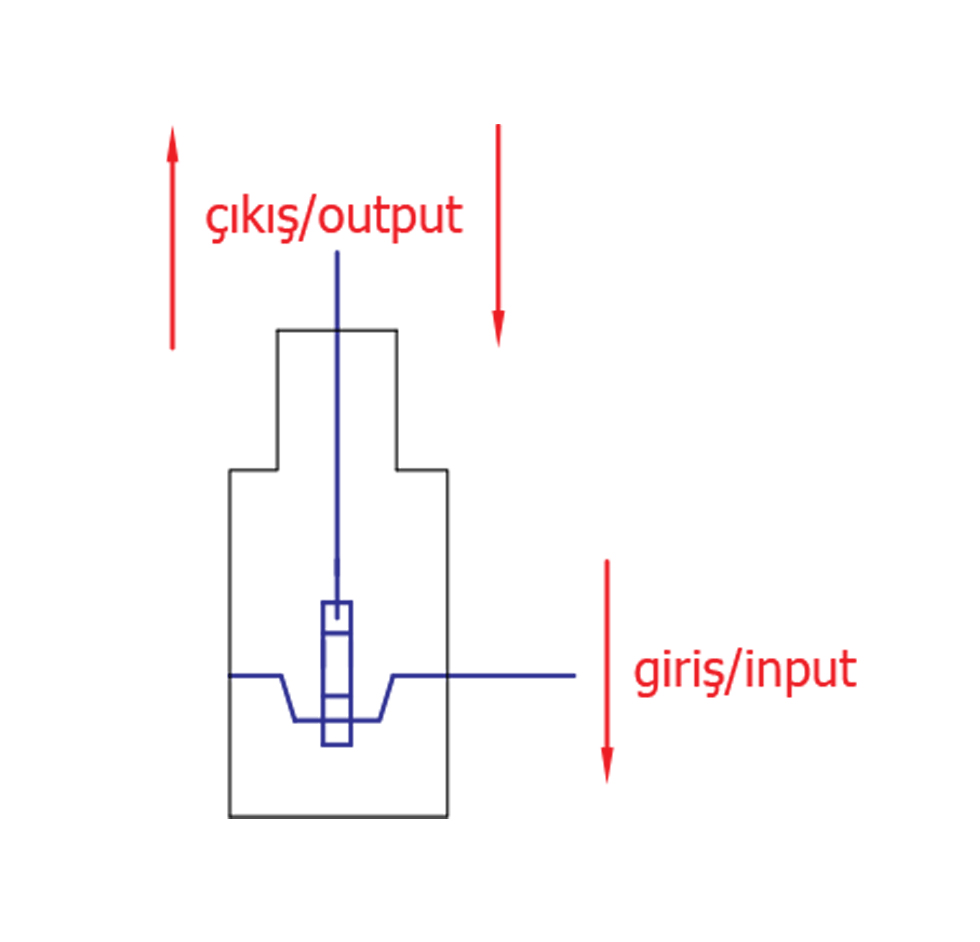

Tree Shaker Machine Gear Arrangement
