Homepage >DS308 Beet Harvesting Machine

DS308
Beet Harvesting Machine

Gearboxes of Harvesting Machine
DS308

Beet Harvesting Machine

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 75 HP / 56 kW
Output Torque 930 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 2 Lt.
Weight 62,50 kg
Usage Area Beet Harvesting Machine



Technical Drawing
DS308
Beet Harvesting Machine

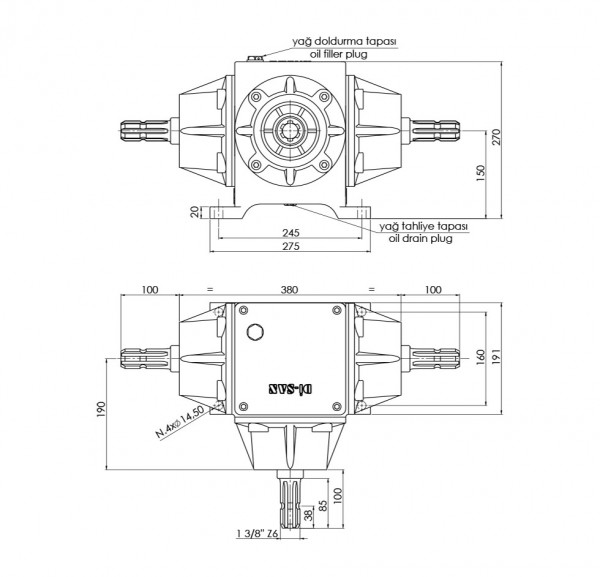

Beet Harvesting Machine Technical Drawing

Gear Arrangement
DS308
Beet Harvesting Machine

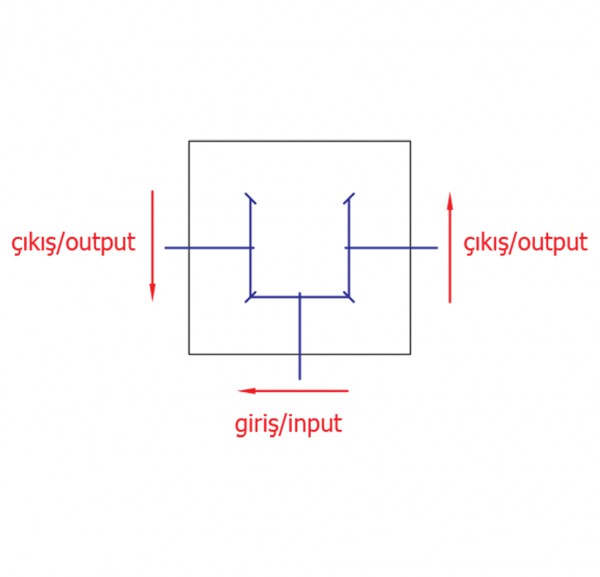

Beet Harvesting Machine Gear Arrangement
