Homepage >DS307 Zucchini Aligning Machine

DS307
Zucchini Aligning Machine

Gearboxes of Harvesting Machine
DS307

Zucchini Aligning Machine

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 40 HP / 30 kW
Output Torque 511 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1 Lt.
Weight 29 kg
Usage Area Zucchini Aligning Machine

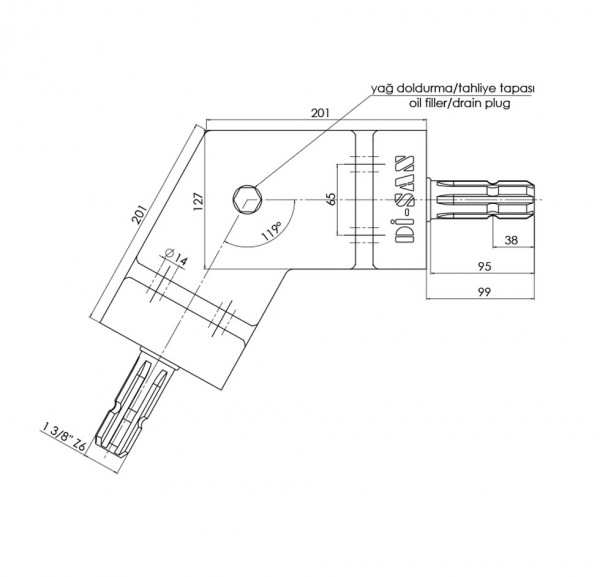

Technical Drawing
DS307
Zucchini Aligning Machine

Zucchini Aligning Machine Technical Drawing

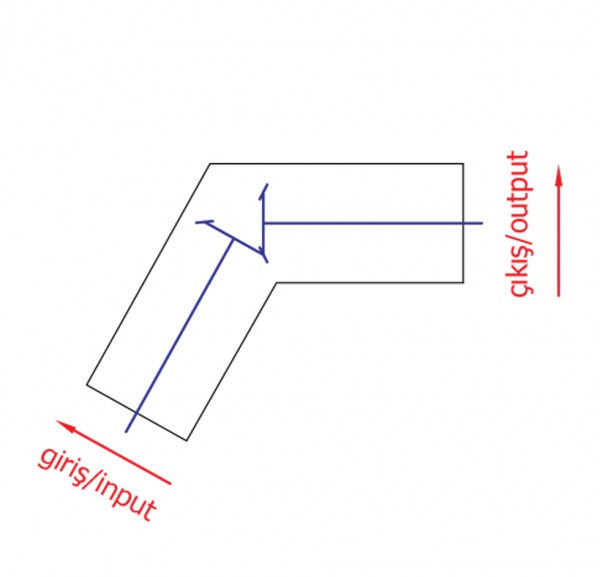

Gear Arrangement
DS307
Zucchini Aligning Machine

Zucchini Aligning Machine Gear Arrangement
