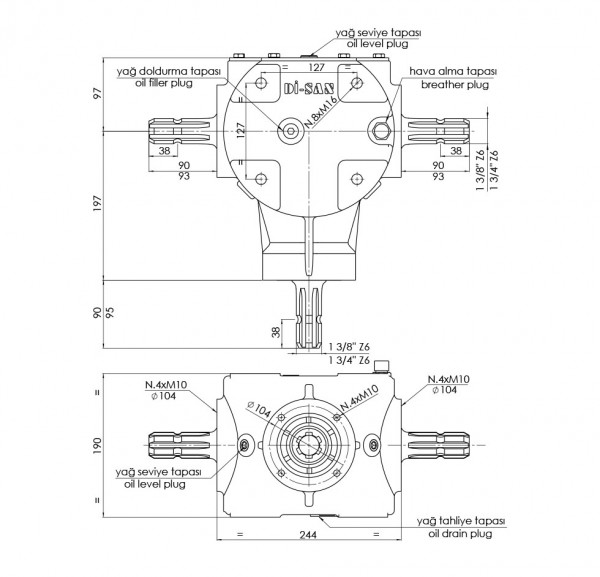

DS306
Double Chop Forage Harvester
Specifications
| Product Code | A | B | C |
| Gear Ratio | 1,86:1 | 1,35:1 | 1:1 |
| Input Speed | 540 rpm | ||
| Output Speed | 291 rpm | 400 rpm | 540 rpm |
| Input Power | 78 HP / 58 kW | 110 HP / 82 kW | 120 HP / 89 kW |
| Output Torque | 1846 Nm | 1900 Nm | 1527 Nm |
| Oil Grade | SAE 90 / SAE 140 | ||
| Oil Volume | 2 Lt. | ||
| Weight | 33 kg | ||
| Usage Area | Double Chop Forage Harvester | ||
