DS305
Bale Loader

Gearboxes of Harvesting Machine
DS305

Bale Loader

Specifications

Gear Ratio 3:1
Input Speed 540 rpm
Output Speed 180 rpm
Input Power 20 HP / 15 kW
Output Torque 772 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1 Lt.
Weight 19 kg
Usage Area Bale Loader

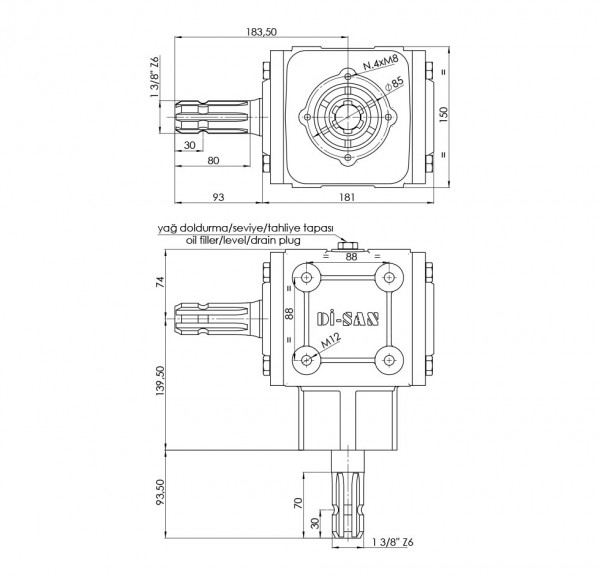

Technical Drawing
DS305
Bale Loader

Bale Loader Technical Drawing

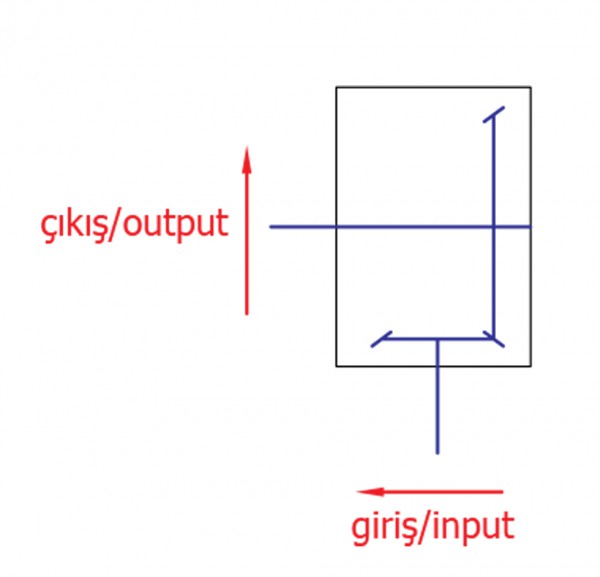

Gear Arrangement
DS305
Bale Loader

Bale Loader Gear Arrangement
