Homepage >DS302 Beet Harvesting Machine

DS302
Beet Harvesting Machine

Gearboxes of Harvesting Machine
DS302

Beet Harvesting Machine

Product Document

Specifications

Gear Ratio 3:1
Input Speed 540 rpm
Output Speed 180 rpm
Input Power 30 HP / 22 kW
Output Torque 1150 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 0,50 Lt.
Weight 16,50 kg
Usage Area Beet Harvesting Machine



Technical Drawing
DS302
Beet Harvesting Machine

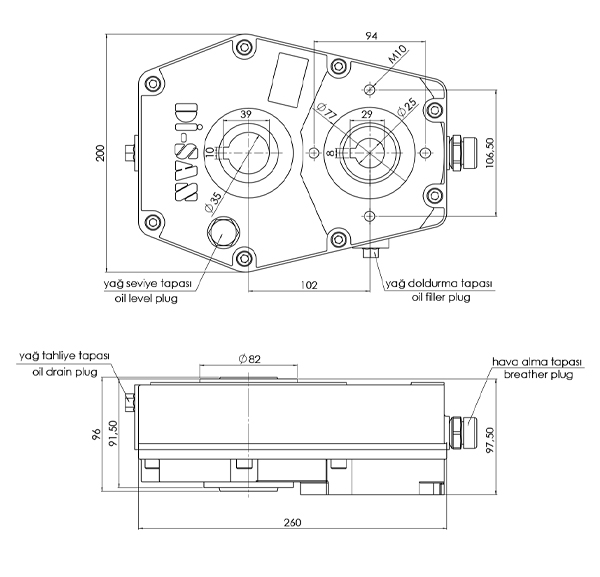

Beet Harvesting Machine Technical Drawing

Gear Arrangement
DS302
Beet Harvesting Machine

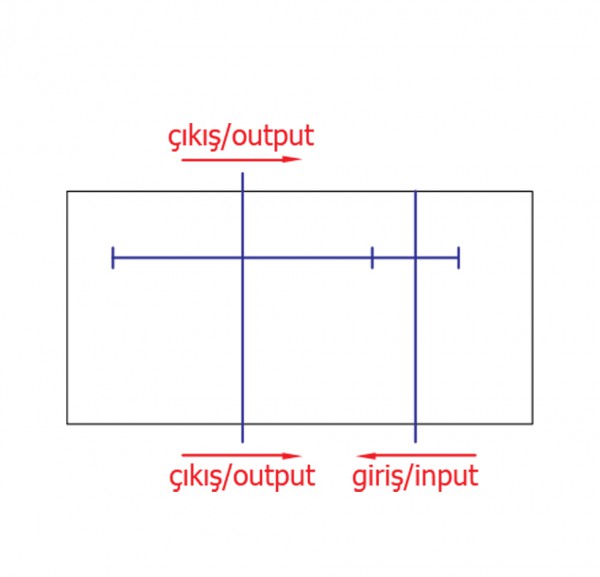

Beet Harvesting Machine Gear Arrangement
