Homepage >DS301 Potato Harvesting Machine

DS301
Potato Harvesting Machine

Gearboxes of Harvesting Machine
DS301

Potato Harvesting Machine

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 50 HP / 37 kW
Output Torque 615 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1,50 Lt.
Weight 42 kg
Usage Area Potato Harvesting Machine

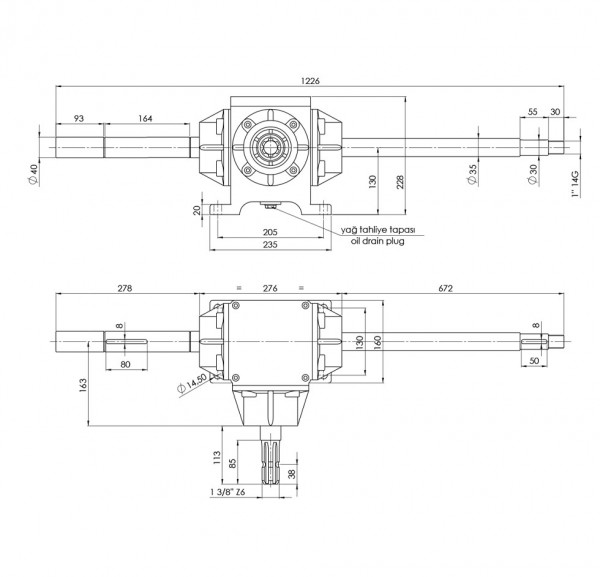

Technical Drawing
DS301
Potato Harvesting Machine

Potato Harvesting Machine Technical Drawing

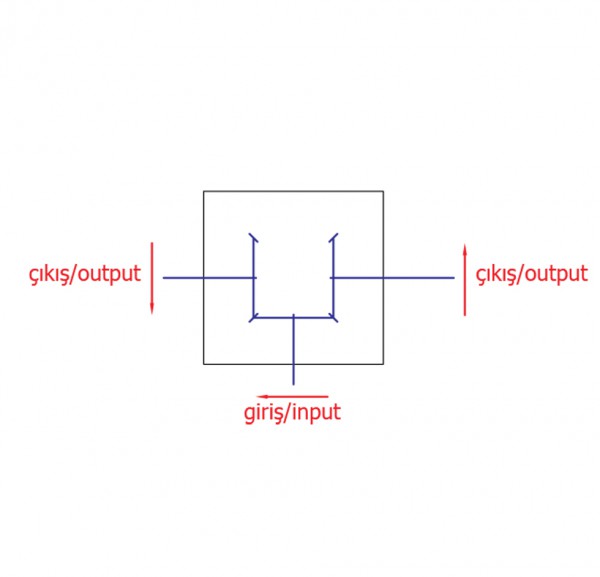

Gear Arrangement
DS301
Potato Harvesting Machine

Potato Harvesting Machine Gear Arrangement
