Homepage >DS300 Potato Harvesting Machine

DS300
Potato Harvesting Machine

Gearboxes of Harvesting Machine
DS300

Potato Harvesting Machine

Product Document

Specifications

Gear Ratio 3,20:1
Input Speed 540 rpm
Output Speed 169 rpm
Input Power 35 HP / 26 kW
Output Torque 1425 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 1 Lt.
Weight 26 kg
Usage Area Potato Harvesting Machine

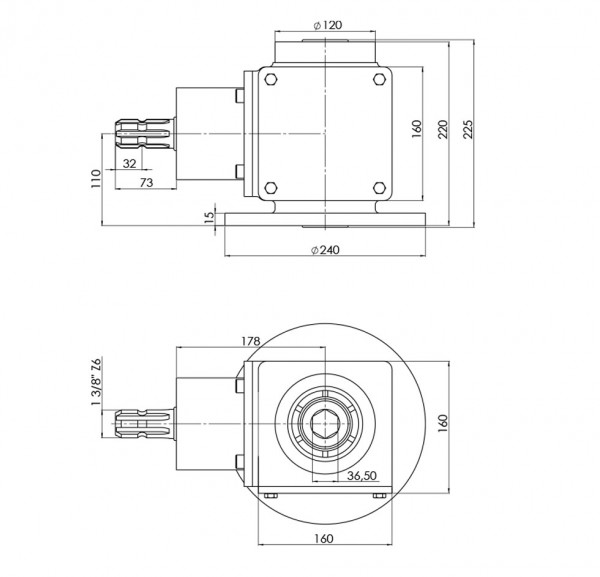

Technical Drawing
DS300
Potato Harvesting Machine

Potato Harvesting Machine Technical Drawing

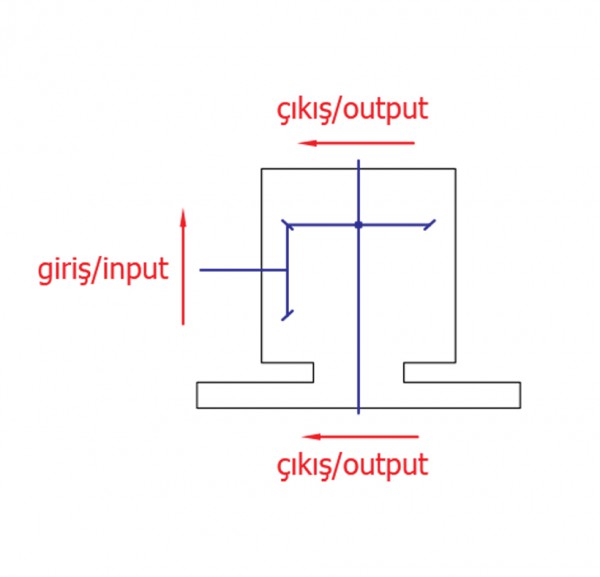

Gear Arrangement
DS300
Potato Harvesting Machine

Potato Harvesting Machine Gear Arrangement
