Homepage >DS107 Fertilizer Spreader

DS107
Fertilizer Spreader

Gearboxes of Fertilizer Spreader
DS107

Fertilizer Spreader

Product Document

Specifications

Gear Ratio 1:1,82
Input Speed 1000 rpm
Output Speed 1820 rpm
Input Power 24 HP / 18 kW
Output Torque 92 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 2,50 Lt.
Weight 42 kg
Usage Area Fertilizer Spreader



Technical Drawing
DS107
Fertilizer Spreader

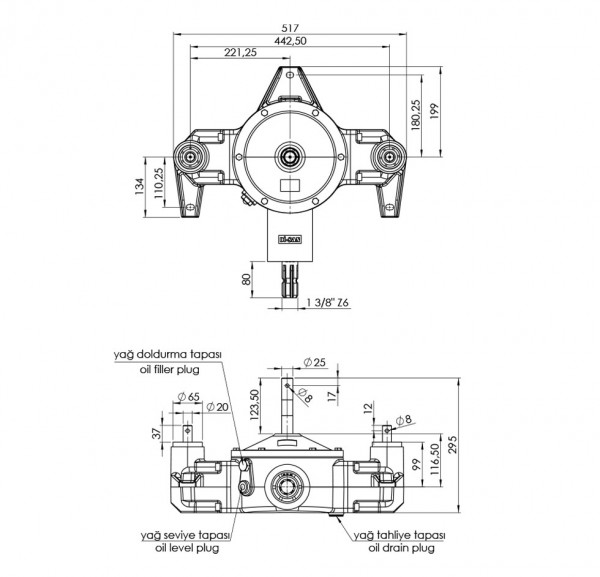

Fertilizer Spreader Technical Drawing

Gear Arrangement
DS107
Fertilizer Spreader

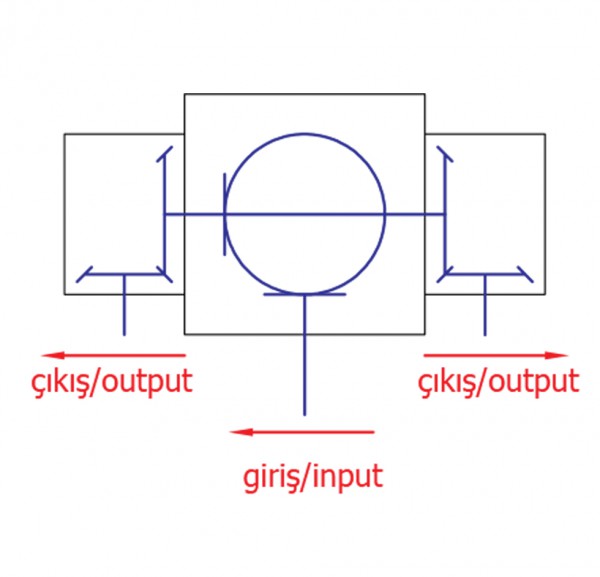

Fertilizer Spreader Gear Arrangement
