Homepage >DS106 Fertilizer Spreader

DS106
Fertilizer Spreader

Gearboxes of Fertilizer Spreader
DS106

Fertilizer Spreader

Product Document

Specifications

Gear Ratio 1:1,33
Input Speed 540 rpm
Output Speed 720 rpm
Input Power 15 HP / 11 kW
Output Torque 142 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 0,75 Lt.
Weight 27 kg
Usage Area Fertilizer Spreader



Technical Drawing
DS106
Fertilizer Spreader

Fertilizer Spreader Technical Drawing

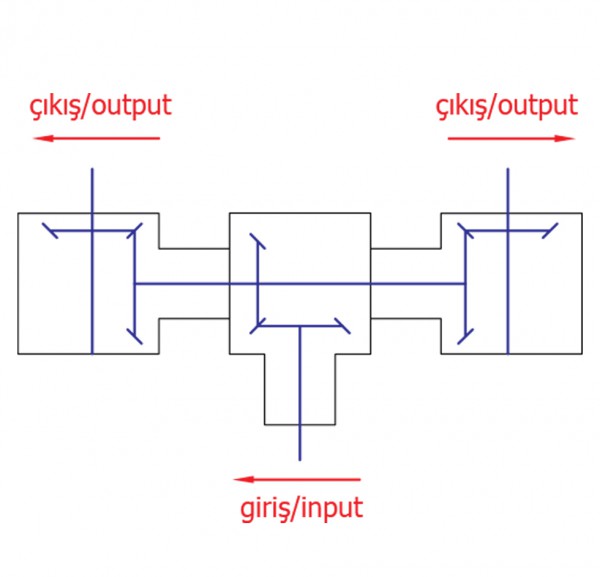

Gear Arrangement
DS106
Fertilizer Spreader

Fertilizer Spreader Gear Arrangement
