Homepage >DS105 Fertilizer Spreader

DS105
Fertilizer Spreader

Gearboxes of Fertilizer Spreader
DS105

Fertilizer Spreader

Product Document

Specifications

Gear Ratio 1:1
Input Speed 540 rpm
Output Speed 540 rpm
Input Power 15 HP / 11 kW
Output Torque 189 Nm
Oil Grade SAE 90 / SAE 140
Oil Volume 0,30 Lt.
Weight 5 kg
Usage Area Fertilizer Spreader



Technical Drawing
DS105
Fertilizer Spreader

Fertilizer Spreader Technical Drawing

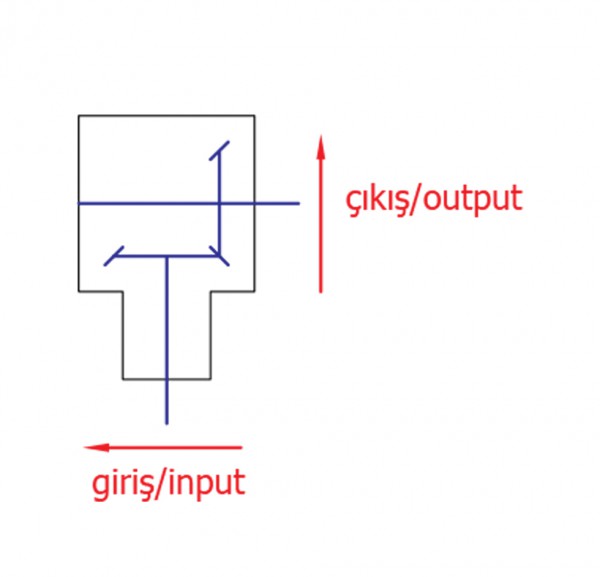

Gear Arrangement
DS105
Fertilizer Spreader

Fertilizer Spreader Gear Arrangement
